EDI 753 (Request for Routing Instructions) is a key Electronic Data Interchange (EDI) transaction used to request routing instructions before shipments are released. This guide explains the purpose, structure, compliance requirements, and implementation strategies of EDI 753 to help suppliers, logistics providers, and IT teams support routing workflows accurately and efficiently.

What Is an EDI 753 Transaction Set?

EDI 753 is an ANSI X12 transaction set titled Request for Routing Instructions.

It is used by a supplier or shipper to formally request routing instructions from a carrier, retailer, or logistics authority before shipping goods.

It belongs to the ANSI ASC X12 700-series (Transportation transaction sets) and typically initiates a routing exchange process that is completed by EDI 754 (Routing Instructions).

Official Context (ASC X12)

The EDI 753 transaction set is designed to:

• Communicate shipment details prior to dispatch
• Identify involved parties (ship-from, ship-to, bill-to)
• Provide shipment reference numbers
• Specify the requested ship or pickup dates
• Enable routing approval workflows

It does not provide routing instructions itself. It requests them.

What Is an EDI 753 Document Used For?

The EDI 753 document is used to:

• Request carrier routing authorization
• Initiate transportation planning workflows
• Comply with retailer-controlled freight routing requirements
• Standardize routing communication within EDI environments
• Automate routing exchanges between ERP/TMS systems

It is commonly required in:

• Retail distribution networks
• Automotive supply chains
• Consumer packaged goods (CPG) logistics
• High-volume manufacturing environments
• 3PL-managed transportation operations

Where EDI 753 Fits in the Transportation Workflow

EDI 753 is used in environments where the supplier does not control freight routing decisions.

Instead, the retailer, buyer, or designated logistics authority determines which carrier must be used.

Typical Roles in the Routing Process

• Supplier/Vendor – Prepares goods for shipment, but cannot ship until the routing is approved.
• Retailer / Buyer / Routing Authority – Controls inbound freight and determines which carrier to use.
• Carrier – Executes the physical transportation after routing is assigned.

Standard Routing Exchange Process

1. Supplier prepares shipment details

Includes purchase order number, shipment weight, pallet count, ready date, and ship-from location.

2. Supplier sends EDI 753 (Request for Routing Instructions)

The 753 is sent to the retailer or routing authority to request transportation instructions.

3. Retailer or routing authority reviews the request

They determine:

• Approved carrier
• Pickup date or window
• Freight terms
• Routing reference numbers

4. Retailer or logistics authority sends EDI 754 (Routing Instructions)

The EDI 754 communicates the approved carrier and routing details back to the supplier.

5. Supplier releases shipment according to approved routing

The designated carrier is scheduled for pickup.

Why This Process Exists

This routing control model is common in:

• Large retail distribution networks
• Big-box retailers
• Automotive OEM supply chains
• Centralized freight management programs

It ensures:

• Freight cost control
• Carrier contract compliance
• Consolidated inbound transportation
• Audit traceability

EDI 753 is therefore the trigger document in retailer-controlled freight environments. Without it, shipment release may violate compliance requirements.

EDI 753 Document Structure (Based on ANSI X12 4050 Example)

Below is a real-world EDI 753 structure (X12 4050 format), illustrating how routing requests are organized at interchange, group, and transaction levels.

ISA*00*          *00*          *12*51427-7555     *08*006959555      *210725*1453*U*4050 *000000007*0*T*>~

GS*RF*5142707555*006959555*20250910*145301*7*X*4050~

ST*753*00001~BGN*00*18-1*20250411***100~

N1*SF*Demo Company # 1*1*DUNS_COMPANY1~

LX*1~N1*ST*Company stock*92*9999900~

N4*Montreal*QC*H2V1A6*CA~

G62*EP*20251001*EP*000000~

G62*LP*20121001*LP*000000~

USI*0*PLT*N~

OID**IMPORT_TEST1**CTN*0*L*0*E*0~

CMC*DFT*100~

OID**IMPORT_TEST3**CTN*0*L*0*E*0~

CMC*DFT*100~

SE*14*00001~

GE*1*7~

IEA*1*000000007~

Delimiters:

• * = data element separator
• ~ = segment terminator

Actual production files may include additional loops and qualifiers.

The Golden Rule of 753 Compliance: Always validate your EDI 753 against the specific Trading Partner Implementation Guide. While the X12 standard defines the structure, each retailer (e.g., Amazon, Home Depot) may have unique requirements for mandatory fields in the L11 (Reference) or G62 (Date) segments. Failure to meet these partner-specific rules leads to “EDI syntax errors” and potential shipment delays.

How to Read This EDI 753 Sample

This example follows ANSI X12 version 4050 and shows a standard Request for Routing Instructions structure.

Interchange Level (ISA / IEA)

• ISA – Identifies sender, receiver, date/time, and X12 version.
• IEA – Closes the interchange and validates the control number.

These segments control the entire transmission envelope.

Functional Group Level (GS / GE)

• GS (RF) – Groups routing-related transactions.
• GE – Confirms the number of transactions in the group.

RF indicates Routing and Freight transactions.

Transaction Set Level (ST / SE)

• ST*753 – Identifies the document as an EDI 753.
• SE – Confirms the total number of segments and validates the transaction control number.

Core Business Segments

• BGN – Routing request reference number and date.
• N1 (SF) – Ship-from party.
• N1 (ST) – Ship-to location.
• N4 – Geographic location details.
• LX – Starts shipment detail loop.
• G62 – Pickup date window (Earliest / Latest).
• USI – Unit shipping information (e.g., pallets).
• OID – Order-level details.
• CMC – Transportation or equipment information.

What This Document Represents

This EDI 753 message:

• Identifies the shipment
• Specifies origin and destination
• Defines pickup timing
• Lists shipment unit and order details
• Requests routing instructions from the routing authority

The responding document would typically be EDI 754 (Routing Instructions).

EDI 753 vs EDI 754: Key Differences

The routing process is a two-part exchange that ensures the right carrier arrives at the right time:

1. EDI 753 (Request): The supplier sends shipment details including weight, volume, ready date, and location.
2. EDI 754 (Response): The routing authority processes the request and responds with the EDI 754 Routing Instructions, which include the carrier assignment and the scheduled pickup window.

EDI 753 and 754 function as complementary documents in controlled freight routing environments.

Industries That Commonly Use EDI 753

• Retail supply chains
• Big-box distribution networks
• Automotive manufacturing
• Consumer packaged goods
• Apparel and fashion logistics
• Third-party logistics providers

Usage is most common where retailers control inbound freight routing.

EDI 753 Compliance Requirements

Compliance typically requires:

• ANSI ASC X12 standard adherence
• Version alignment (4010, 5010, or partner-specific)
• Validation against the trading partner implementation guide
• Segment syntax validation
• Control number reconciliation
• Functional acknowledgment (997) handling

Vendors must ensure:

• Correct qualifiers
• Mandatory segment presence
• Accurate reference numbers
• Consistent envelope configuration

Retailers may impose routing request deadlines and response timing rules.

How to Integrate EDI 753 into a Supply Chain Management System

Integration typically involves:

1. Mapping 753 segments to ERP/TMS data fields.
2. Configuring an EDI translator (on-premise or cloud).
3. Establishing communication protocol (AS2, SFTP, VAN).
4. Testing with trading partner certification.
5. Automating acknowledgment processing (997/999).

Integration approaches:

• Direct ERP mapping
• Middleware integration
• Managed EDI service providers
• Cloud-based EDI platforms

Benefits of Automating EDI 753 Processing

Automation enables:

• Faster routing approval cycles
• Reduced manual entry errors
• Standardized audit trail
• Improved shipment planning accuracy
• Real-time workflow tracking
• Reduced compliance penalties

High-volume suppliers benefit most from automated routing exchanges.

EDI 753 vs EDIFACT: Is There an Equivalent Message?

For organizations operating globally, it is important to understand how ANSI X12 EDI 753 compares to EDIFACT standards.

There is no direct 1-to-1 EDIFACT equivalent to the ANSI X12 753 (Request for Routing Instructions). However, similar routing and transportation instruction functions may be handled using EDIFACT IFTMIN (Instruction message).

ANSI X12 753 (North America)

• Standard: ANSI ASC X12
• Purpose: Request routing instructions before shipment
• Typically used in retailer-controlled freight environments
• Usually followed by EDI 754 (Routing Instructions)

EDIFACT IFTMIN (Global Use)

• Standard: UN/EDIFACT
• Message type: IFTMIN (Instruction message)
• Used to transmit transport instructions from the consignor to the carrier or logistics provider
• Supports multimodal transportation scenarios

Key Difference

• EDI 753 is specifically designed to request routing approval within controlled inbound freight programs.
• IFTMIN is broader and used to issue transport instructions, not strictly to request routing authorization.

Because EDIFACT implementations vary by industry and country, routing workflows using IFTMIN may differ significantly from X12 753/754 exchanges.

Common Errors in EDI 753 Transmissions

Frequent Issues

• Missing BGN reference ID
• Incorrect N1 qualifier codes
• Invalid date format in G62
• Control number mismatch in SE
• Envelope configuration errors
• Non-compliant trading partner formatting

Troubleshooting Checklist

• Validate against X12 syntax rules
• Confirm partner-specific implementation guide
• Check element lengths and qualifiers
• Reconcile control numbers
• Confirm correct delimiter usage

Testing in a validation environment before production reduces routing rejections.

Implementation Strategy: Build In-House or Use an EDI Provider?

When implementing EDI 753 workflows, companies typically choose between two approaches:

Option 1: Develop and Maintain an In-House EDI Solution

This involves:

• Building or configuring an internal EDI translator
• Developing custom parsing and validation logic
• Mapping 753 segments to ERP or TMS systems
• Maintaining communication protocols (AS2, SFTP, etc.)
• Managing compliance updates and trading partner changes

While technically feasible, this approach often presents challenges:

• Difficulty finding experienced EDI specialists
• High salary and retention costs
• Ongoing maintenance tied to X12 version updates
• Retailer-specific implementation guide complexity
• 24/7 monitoring and error handling requirements

For many mid-sized suppliers, maintaining internal EDI expertise becomes operationally expensive and resource-intensive.

Option 2: Work With an EDI Service Provider

Many organizations choose to outsource EDI 753 integration and compliance management to specialized providers.

EDI providers typically offer:

• Mapping and implementation based on partner specifications
• Ongoing compliance monitoring
• Communication protocol management
• Error handling and transaction validation
• Support for multiple trading partners

For example, providers such as EDI2XML offer different integration models depending on company structure and technical capacity:

Fully Managed EDI Service (with EDI Portal)

• Complete EDI handling and monitoring
• No in-house EDI expertise required
• Web-based portal access for document visibility
• Suitable for suppliers without internal EDI infrastructure

EDI Web Service (API Integration)

• REST-based integration model
• Direct system-to-system automation
• Designed for companies with ERP or custom platforms
• Enables embedded EDI workflows within existing applications

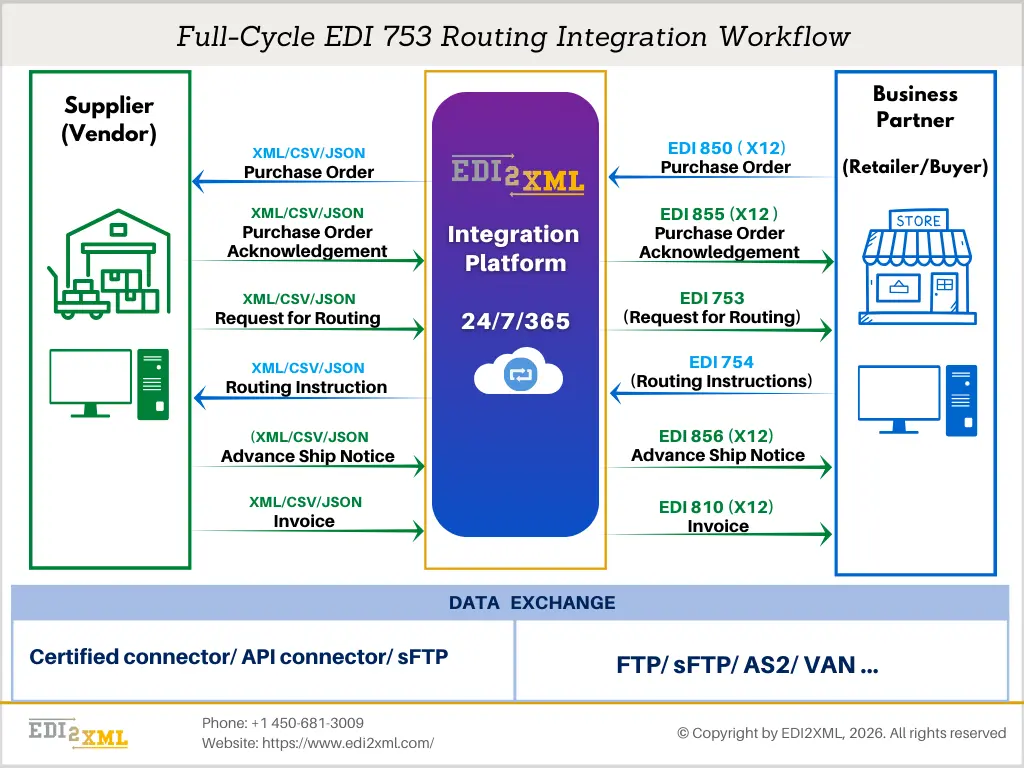

Automated EDI 753/754 Routing Workflow via EDI2XML Integration Platform

This workflow illustrates how EDI2XML acts as a seamless bridge between a Supplier’s internal data and a Buyer’s strict EDI requirements. Instead of the Supplier manually generating complex X12 files, they simply export shipment details from their ERP. The EDI2XML Platform automatically translates these into a compliant EDI 753 request. Once the Buyer responds with an EDI 754, our platform converts those instructions back into a human-readable format for the warehouse, ensuring 100% compliance without the need for in-house EDI expertise.

EDI 753 Implementation Strategy and Next Steps

EDI 753 is a critical transaction for retailer-driven routing control. Errors, delays, or non-compliance can result in shipment holds, chargebacks, and strained trading partner relationships. Building and maintaining in-house EDI expertise is often expensive and operationally risky – especially when X12 versions, retailer requirements, and integration needs continuously evolve.

Partnering with an experienced EDI provider significantly reduces implementation time, eliminates compliance risk, and ensures scalable integration across trading partners. With more than 25 years of EDI experience, EDI2XML delivers fully managed EDI services, API-based integrations, and routing workflow automation designed for supply chain environments. If you are planning to implement or optimize EDI 753 workflows, contact an EDI2XML expert today for a free consultation and technical assessment.

Frequently Asked Questions (FAQ)

What is an EDI 753 document used for?

It is used to request routing instructions from a carrier or routing authority before shipping goods.

Is EDI 753 mandatory?

It is mandatory only if required by a trading partner or retailer compliance program.

What version includes EDI 753?

Common versions include ANSI X12 4010 and 5010, depending on partner requirements.

Can EDI 753 be automated?

Yes. It can be integrated into ERP, TMS, or managed EDI environments with automated validation and acknowledgments.

Can EDI 753 be sent after the shipment has left?

No. The 753 must be sent and a 754 response must be received before the shipment is dispatched to ensure the correct carrier is used.

What is the international equivalent of EDI 753?

While 753 is an ANSI X12 standard (North America), international shippers using UN/EDIFACT may use the IFTMIN (Instruction Message) for similar purposes.

Tatyana Vandich Marketing Manager

Tatyana Vandich is a marketing and business technology expert specializing in EDI, B2B integration, and digital transformation. She helps companies automate supply chain operations and achieve seamless data exchange through practical, experience-based insights.

See Full Bio

Electronic Data Interchange (EDI) EDI X12 Standard EDIFACT Standard B2B Integration Digital Transformation in Business Supply Chain Automation
